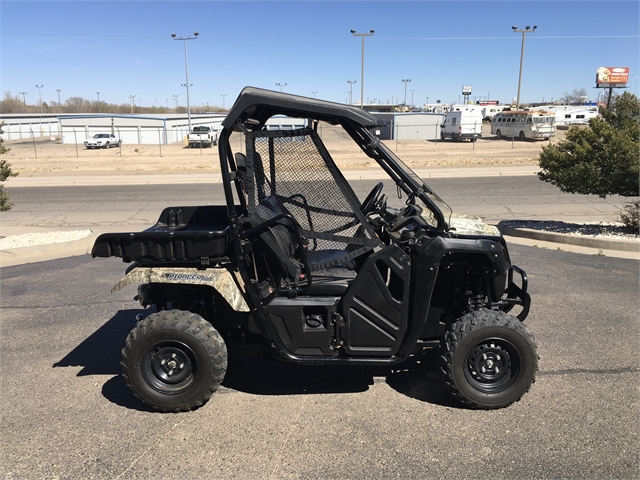

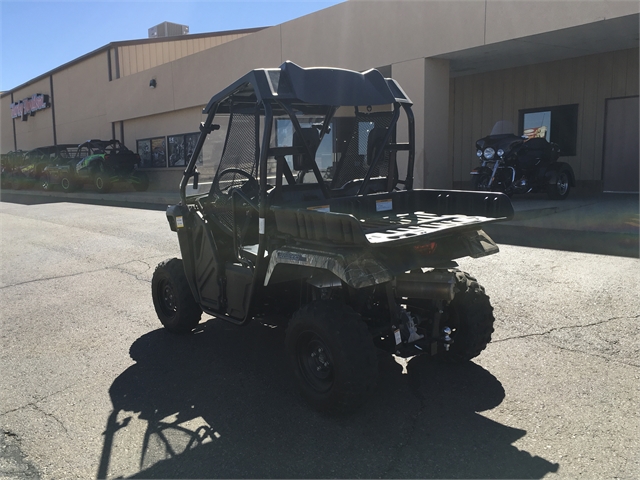

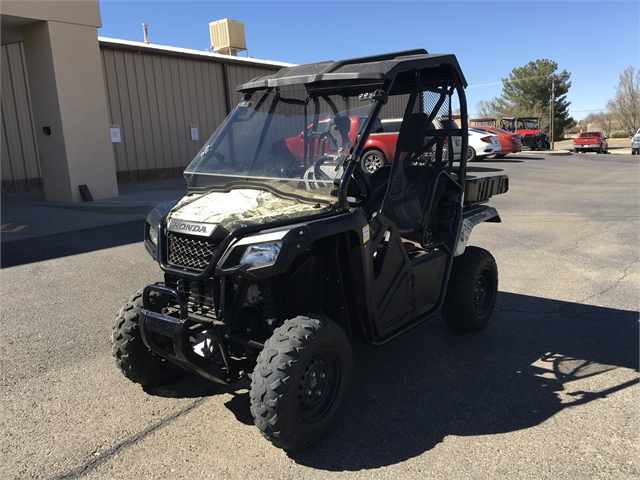

2017 Honda Pioneer 500

Stock #0518
Check Availability
Hi, my name is and I'm interested in this 2017 Honda Pioneer 500 . I'm in the area and you can reach me at or by phone at
  • Status:
    Pre-Owned
  • Vehicle:
    2017 Honda Pioneer 500
  • VIN:
    1HFVE0329H4200518
  • Model Number:
    SXS500M2
  • Mileage:
    1,216 miles
  • Stock Number:
    0518
  • Title:
    Clear
  • Location:
    Champion Motorsports
  • Warranty:
    As Is

BRAKES

  • Front Brake Diameter (in):
    7.9
  • Front Brake Diameter (mm):
    200
  • Front Brake Type:
    Dual Hydraulic Disc
  • Rear Brake Diameter (in):
    6.7
  • Rear Brake Diameter (mm):
    170
  • Rear Brake Type:
    Hydraulic Disc

DRIVE LINE

  • Differential Lock Location:
    Rear
  • Driveline Brand:
    TraxLok™
  • Driveline Type:
    Selectable 4X2 / 4X4
  • Number Of Driveline Modes:
    2

ENGINE

  • Bore (in):
    3.62
  • Bore (mm):
    92
  • Carburetion Type:
    Fuel Injected
  • Compression Ratio:
    9.5
  • Cooling:
    Liquid
  • Cylinders:
    1
  • Displacement (cc):
    475
  • Displacement (ci):
    29
  • Engine Stroke:
    4-Stroke
  • Engine Type:
    Single-Cylinder
  • Fuel Injector Size (mm):
    36
  • Fuel Injector:
    Yes
  • Fuel Requirements:
    Regular
  • Fuel Type:
    Gas
  • Starter:
    Electric
  • Stroke (in):
    2.81
  • Stroke (mm):
    71.5
  • Valve Configuration:
    OHV
  • Valves Per Cylinder:
    4
  • Valves:
    4

EXTERIOR

  • Bash Plate (Front):
    Yes
  • Body Material:
    Plastic
  • Brush Guard:
    Yes
  • Cab Door Material:
    Soft
  • CV Boot Cover:
    Yes
  • Engine Case Guard:
    Yes
  • Frame:
    Steel
  • Radiator Guard:
    Yes

INSTRUMENTATION

  • Fuel Level Warning Type:
    Gauge
  • Temperature Warning Type:
    Gauge

LIGHTS

  • Type:
    Halogen

SEATS

  • Headrest:
    Yes
  • Number Of Rows:
    1
  • Number Of Seats:
    2
  • Seat Height (in):
    28.7
  • Seat Height (mm):
    729
  • Seat Material:
    Vinyl
  • Seat Type:
    Bucket

STEERING

  • Steering Control:
    Steering Wheel
  • Steering Type:
    Rack & Pinion

STORAGE

  • Capacity (kgs):
    204.1
  • Capacity (lbs):
    450
  • Number Of Cupholders:
    2

SUSPENSION

  • Front Suspension Type:
    Independent Double Wishbone
  • Front Travel (in):
    5.9
  • Front Travel (mm):
    149.9
  • Number Rear Shock Absorbers:
    2
  • Rear Adjustable Shock / Spring Pre-Load:
    Yes
  • Rear Stabilizer Bar:
    Yes
  • Rear Suspension Material:
    Steel
  • Rear Suspension Type:
    Independent Double Wishbone
  • Rear Travel (in):
    5.9
  • Rear Travel (mm):
    149.9

TECHNICAL SPECIFICATIONS

  • Fuel Capacity (gal):
    4.1
  • Fuel Capacity (l):
    15.5
  • Fuel Capacity Reserve (gal):
    1.1
  • Fuel Capacity Reserve (l):
    4.2
  • Ground Clearance (in):
    8.5
  • Ground Clearance (mm):
    215.9
  • Height (in):
    71.3
  • Height (mm):
    1811
  • Length (ft):
    8.55
  • Length (ft/ft):
    8
  • Length (ft/in):
    6.6
  • Length (in):
    102.6
  • Length (mm):
    2606
  • Towing Capacity (kgs):
    453.6
  • Towing Capacity (lbs):
    1000
  • Turning Radius (ft):
    12.8
  • Wet Weight (kg):
    464.9
  • Wet Weight (lbs):
    1025
  • Wheelbase (in):
    73
  • Wheelbase (mm):
    1854.2
  • Width (in):
    50
  • Width (mm):
    1270

TOWING & HAULING

  • Rear Hitch Type:
    Receiver
  • Size (cm):
    5.1
  • Size (in):
    2

TRANSMISSION

  • Hi / Low Range:
    Yes
  • Number Of Speeds:
    5
  • Primary Drive (Front Wheel):
    Shaft
  • Primary Drive (Rear Wheel):
    Shaft
  • Reverse:
    Yes
  • Transmission Type:
    Manual / Automatic Clutch

WHEELS & TIRES

  • Front Tire (Full Spec):
    Maxxis® 24 x 8-12
  • Front Tire Diameter (in):
    24
  • Front Tire Width:
    8
  • Front Wheel Diameter:
    12
  • Rear Tire (Full Spec):
    Maxxis® 24 x 10-12
  • Rear Tire Diameter (in):
    24
  • Rear Tire Width:
    10
  • Rear Wheel Diameter:
    12
  • Tire Brand:
    Maxxis®
  • Wheels Composition:
    Steel
